This webpage presents the bestknown Pareto fronts of twelve benchmark design problems of Water Distribution Systems. These problems were collected from the literature and the Pareto fronts were generated using five stateoftheart multiobjective evolutionary algorithms (MOEAs).
These benchmark problems are categorised into four groups (small, medium, intermediate and large) according to the size of search space. Each problem is formulated to minimise the total cost and to maximise the network resilience. Five MOEAs including two hybrid algorithms (AMALGAM and Borg) were employed to identify the currently bestknown Pareto front of each problem given extensive computational budget. The EPANET input file, the associated source code and the data of bestknown Pareto front for each benchmark problem are provided in this page.
The aim of this public data is to allow other researchers in the community to have multiple reference points to test new techniques and optimisation algorithms.
Type
Problem
Name
#LC
#WS
#DV
#PD
Search Space
Ref
SP
TwoReservoir Network  TRN  3  2  8  8*  3.28x10^{7}  [1]
TwoLoop Network  TLN  1  1  8  14  1.48x10^{9}  [2]
BakRyan Network  BAK  1  1  9  11  2.36x10^{9}  [3]
MP
New York Tunnel Network  NYT  1  1  21  16  1.93x10^{25}  [4]
Blacksburg Network  BLA  1  1  23  14  2.30x10^{26}  [5]
Hanoi Network  HAN  1  1  34  6  2.87x10^{26}  [6]
GoYang Network  GOY  1  1  30  8  1.24x10^{27}  [7]
IP
Fossolo Network  FOS  1  1  58  22  7.25x10^{77}  [8]
Pescara Network  PES  1  3  99  13  1.91x10^{110}  [8]
LP
Modena Network  MOD  1  4  317  13  1.32x10^{353}  [8]
Balerma Irrigation Network  BIN  1  4  454  10  1.00x10^{455}  [9]
Exeter Network  EXN  1  7  567  11  2.95x10^{590}  [10]
Note: SPSmall Problems; MPMedium Problems; IPIntermediate Problems; LPLarger Problems; LCnumber of loading conditions; WSnumber of water sources; DVnumber of decision variables; PDnumber of pipe diameter options. *For TRN problem, three existing pipes have 8 diameter options for duplication and 2 extra options, i.e. cleaning and leaving alone.
Type
Problem
Acronym
Number of
Search SpaceSize

LC
WS
DV
PD

SP
TwoReservoir Network
TRN
3
2
8
8^{*}
3.28x10^{7}
TwoLoop Network
TLN
1
1
8
14
1.48x10^{9}

BakRyan Network
BAK
1
1
9
11
2.36x10^{9}

MP
New York Tunnel Network
NYT
1
1
21
16
1.93x10^{25}
Blacksburg Network
BLA
1
1
23
14
2.30x10^{26}

Hanoi Network
HAN
1
1
34
6
2.87x10^{26}

GoYang Network
GOY
1
1
30
8
1.24x10^{27}

IP
Fossolo Network
FOS
1
1
58
22
7.25x10^{77}
Pescara Network
PES
1
3
99
13
1.91x10^{110}

LP
Modena Network
MOD
1
4
317
13
1.32x10^{353}
Balerma Irrigation Network
BIN
1
4
454
10
1.00x10^{455}

Exeter Network
EXN
1
7
567
11
2.95x10^{590}
Note: SPSmall Problems; MPMedium Problems; IPIntermediate Problems; LPLarger Problems; LCnumber of loading conditions; WSnumber of water sources; DVnumber of decision variables; PDnumber of pipe diameter options.
^{*}For TRN problem, three existing pipes have 8 diameter options for duplication and 2 extra options, i.e. cleaning and leaving alone.
Two objectives are considered, minimisation of the total capital cost associated with pipe components and maximisation of the network resilience. The mathematical expression of each objective is given in Eq. 1 and Eq. 2, respectively.
(1)
Where C=total cost (monetary units problem dependant); np=number of pipes; U_{c}=unit pipe cost depending on the diameter selected in a specific problem; D_{i}=diameter of pipe i; L_{i}=length of pipe i.
(2)
Where I_{n}=network resilience; nn=number of demand nodes; C_{j}, Q_{j}, H_{j} and H_{j}^{req}=uniformity, demand, actual head and minimum head of node j; nr=number of reservoirs; Q_{k} and H_{k}=discharge and actual head of reservoir k; npu=number of pumps; P_{i}=power of pump i if any; γ=specific weight of water; npj=number of pipes connected to node j; Di=diameter of pipe i connected to demand node j.
MOEAs Used
NSGAII features a fast nondominated sorting approach, implicit elitist selection method based on Paretodominance rank and a secondary selection method based on crowding distance, which significantly improve its performance on difficult multiobjective problems. Moreover, it provides a constrainthandling technique to deal with constrained problems efficiently and supports both binary and real coding representations. More details about NSGAII readers are referred to the following paper:
 Deb, K., Pratap, A., Agarwal, S., Meyarivan, T., 2002. A Fast and Elitist Multiobjective Genetic Algorithm: NSGAII. IEEE T. Evolut. Comput. 6(2), 182197.
The source code of NSGAII was written in C and can be downloaded from the KanGAL website.
AMALGAM is a hybrid optimisation framework which employs four subalgorithms simultaneously within its structure, including NSGAII, adaptive metropolis search, particle swarm optimisation and differential evolution. It is designed to overcome the drawbacks of using an individual algorithm. The strategies of global information sharing and genetically adaptive offspring creation are implemented in the process of population evolution. Each subalgorithm is allowed to produce a specific number of offspring based on the survival history of its solutions in the previous generation. The pool of current best solutions is shared among subalgorithms for reproduction.
More details about AMALGAM readers are referred to the following paper:
 Vrugt, J. A., Robinson, B. A., 2007. Improved Evolutionary Optimization from Genetically Adaptive Multimethod Search. Proc. Natl. Acad. Sci. U.S.A. 104(3), 708711.
The source code of AMALGAM was written in Matlab and can be obtained by request on their website.
Unlike the NSGAII, εMOEA is a steadystate MOEA in which only one solution is generated per iteration. It incorporates the concept of εdominance, being able to preserve a good representation of Pareto front in terms of convergence and diversity. At the beginning, a population is initialised randomly and the nondominated solutions are retained in an archive. Next, a solution is created via crossover and mutation using two parents each of which selected from the population and the archive. Then, this solution is checked for acceptance or rejection by the population and the archive, using Pareto dominance and εdominance, respectively. The abovementioned procedure is repeated until a stopping criterion is met.
More details about εMOEA readers are referred to the following paper:
 Deb, K., Mohan, M., Mishra, S., 2005. Evaluating the epsilondomination based multiobjective evolutionary algorithm for a quick computation of Paretooptimal solutions. Evolut. Comput. 13(4), 501525.
The source code of εMOEA was written in C and can be downloaded from the KanGal website.
Based on the steadystate structure of εMOEA, Borg incorporates more advanced features into a unified framework, including εdominance, εprogress (a measure of convergence speed), randomised restart, and autoadaptive multioperator recombination (similar to AMALGAM). The advantages of Borg are threefold: (1) usage of εbox dominance archive contributes to maintaining the convergence and diversity concurrently throughout the search; (2) the combination of time continuation, adaptive population sizing, and two types of randomised restart (i.e. εprogress triggered restart and populationtoarchive ratio triggered restart) boosts the algorithm towards global optima; (3) simultaneous employment of multiple recombination operators enhances performance on a wide assortment of problem domains. In addition, the adoption of the steadystate, elitist model of εMOEA make it easily extendable for use on parallel architectures.
More details about Borg readers are referred to the following paper:
 Hadka, D., Reed, P., 2013. Borg: An AutoAdaptive ManyObjective Evolutionary Computing Framework. Evolut. Comput. 21(2), 231259.
The source code of Borg was written in C and can be obtained by request from the BorgMOEA website.
The εNSGAII method goes beyond the common implementation of MOEA by building on NSGAII and three key components, namely εdominance archiving, adaptive population sizing with archive injection, and automatic termination. The εNSGAII differs from the NSGAII primarily in two aspects: (1) while the population evolves in the same manner as NSGAII, an offline archive is frequently updated by selecting the εnondominated solutions from the elitist population at current generation; (2) the optimisation is implemented in consecutive epochs, each of which is terminated automatically according to the userspecified improvement criteria. The next epoch is populated by injecting the members in the archive and generating new random solutions. The εdominance archiving maintains the convergence and diversity of the archive concurrently. It also allows users to specify the precision of each objective and thus is more flexible in practice. Adaptive population sizing contributes to balancing the exploration and exploitation throughout the search, which is achieved by increasing or decreasing the capacity of the population based on the number of members in the archive. Additionally, several connected runs, known as time continuation, enhance the possibility to explore other regions of search space.
More details about εNSGAII readers are referred to the following paper.
 Kollat, J. B., Reed, P. M., 2006. Comparing stateoftheart evolutionary multiobjective algorithms for longterm groundwater monitoring design. Adv. Water Resour. 29(6), 792807.
The source code of εNSGAII was written in C and can be obtained by sending the request to the authors.
Small problems
TRN has eight undetermined pipes and nine prefixed pipes, two reservoirs fixed at 365.76 m (left) and 371.86 m (right) and nine demand nodes. New and cleaned pipes have the same HazenWilliams roughness coefficient of 120. The minimum pressure of all the nodes under three demand patterns is specified in Table TRN.1. The decision variables are the pipe diameters for five new pipes and alternative options (duplication or cleaning or leaving alone) for three existing pipes. Each pipe has eight diameter options to choose from. Table TRN.2 shows available options for pipe diameter and the corresponding unit costs. Figure TRN.1 depicts the layout of TRN.
Table TRN.1. Minimum pressure requirement of each node under three demand patterns of TRN
Table TRN.2. Diameter options and associated unit costs of TRN
Figure TRN.1. Layout of Two Reservoir Network (Undetermined pipes are shown in red lines.)
Two loop network (TLN) consists of one reservoir, six demand nodes and eight pipes organised in two loops. The reservoir has a constant head fixed at 210 m. As a hypothetical network, all pipes have the same length (1000 m) and the HazenWilliams coefficient of 130. The pressure is set to be at least 30.0 m at all demand nodes. Table TLN.1 shows commercially available diameters and the corresponding unit costs (1 in.=0.0254 m). Figure TLN.1 depicts the layout of TLN.
Table TLN.1 Diameter options and associated unit costs of TLN
Figure TLN.1. Layout of Two Loop Network
BakRyan Network (BAK) has fiftyeight pipes including nine new pipes to be sized, thirtyfive demand nodes, one reservoir with a fixed head of 58 m. The HazenWilliams roughness coefficient for each new pipe is 100. The minimum pressure head above the ground elevation of each node is 15 m. Among the new pipes, six of them are parallel. Table BAK.1 shows commercially available diameters and the corresponding unit costs. Figure BAK.1 depicts the layout of BAK.
Table BAK.1 Diameter options and associated unit costs of BAK
Figure BAK.1 Layout of BakRyan Network (Undetermined pipes are shown in red lines.)
Medium problems
The NYT is comprised of twentyone pipes organised in two loops, nineteen demand nodes, and one reservoir with a fixed head of 300 ft (1 ft=0.3048 m). All the existing pipes are considered for duplication in order to meet the projected future demand. The HazenWilliams roughness coefficient for both new and existing pipes is 100. The minimum pressure of all demand nodes is fixed at 255 ft except for node 16 and 17 that are 260 ft and 272.8 ft, respectively. A selection of fifteen diameter sizes are available as well as a ‘do nothing’ option. Table NYT.1 shows the diameter options and associated unit costs. Figure NYT.1 depicts the layout of NYT.
Table NYT.1. Diameter options and associated unit costs of NYT

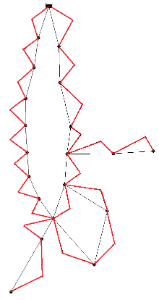

Figure NYT.1. Layout of NYT (Undetermined pipes are shown in red lines.)
Blacksburg Network (BLA) consists of thirtyfive pipes of which twelve have fixed diameters, one reservoir with a fixed head of 715.56 m, and thirty demand nodes. A universal HazenWilliams coefficient of 120 is applied to all the pipes under consideration. The pressure requirement of each node is limited within a specified range under the single loading condition. The minimum pressure head for each node is 30 m, while the maximum pressure head varies from node to node and is provided in Table BLA.1. Table BLA.2 shows commercially available diameters and the corresponding unit costs. Figure 5 depicts the layout of BLA.
Table BLA.1. Maximum pressure head requirement of each node of BLA

Table BLA.2. Diameter options and associated unit costs of BLA

Figure BLA.1. Layout of Blacksburg Network (Undetermined pipes are shown in red lines.)

Hanoi network consists of thirtyfour pipes organised in three loops, thirtyone demand nodes and one reservoir with a fixed head of 100 m. The HazenWilliams roughness coefficient for all pipes is 130. The minimum head above the ground elevation of each node is 30 m. There are six commercially available pipe sizes, ranging from 12 in. to 40 in. (1 in.=0.0254 m). Table HAN.1 shows the diameter options and associated unit costs. Figure HAN.1 depicts the layout of HAN.
Table HAN.1. Diameter options and associated unit costs of HAN

Figure HAN.1. Layout of HAN

GoYang Network includes thirty pipes, twentytwo demand nodes, and one constant pump of 4.52 kW linking to one reservoir with a constant head of 71 m. The HazenWilliams roughness coefficient for each new pipe is 100. The minimum pressure head above the ground elevation of each node is 15 m. Table GOY.1 shows commercially available diameters and the corresponding unit costs. Figure GOY.1 depicts the layout of GOY..
Table GOY.1. Diameter options and associated unit costs of GOY

Figure GOY.1. Layout of GOY

Intermediate problems
Fossolo Network (FOS) includes fiftyeight pipes, thirtysix demand nodes, and one reservoir with a fixed head of 121.00 m. The material for all the pipes is polyethylene. Due to the feature of polyethylene, a relatively high roughness coefficient of 150 is applied to all the pipes. The minimum pressure head of all the demand nodes is maintained at 40 m, while the maximum pressure head of each node is specified in Table FOS.1. In addition, the flow velocity in each pipe is enforced to be less than or equal to 1 m/s. Table FOS.2 shows commercially available diameters and the corresponding unit costs. Figure FOS.1 depicts the layout of FOS.

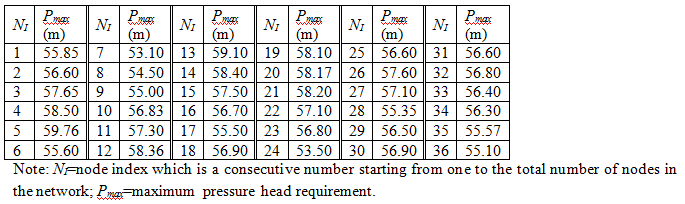

Table FOS.1. Maximum pressure head requirement of each node of FOS

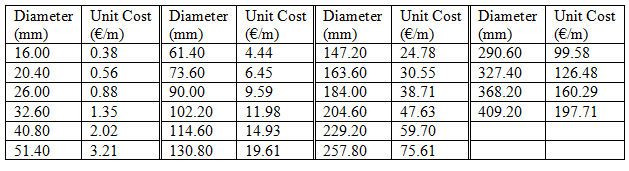

Table FOS.2. Diameter options and associated unit costs of FOS

Figure FOS.1. Layout of Fossolo Network

Pescara Network (PES) includes ninetynine pipes, sixtyeight demand nodes, and three reservoirs with fixed head within 53.08 m to 57.00 m. The pipe material is cast iron. A uniform HazenWilliams roughness coefficient of 130 is applied to all pipes. The minimum pressure head of all the demand nodes is maintained at 20 m, while the maximum pressure head of each node is specified in Table PES.1. In addition, the flow velocity in each pipe is enforced to be less than or equal to 2 m/s. Table PES.2 shows commercially available diameters and the corresponding unit costs. Figure PES.1 depicts the layout of PES.
Table PES.1. Maximum pressure head requirement of each node of PES

Table PES.2. Diameter options and associated unit costs of PES

Figure PES.1. Layout of Pescara Network

Large problems
Modena Network (MOD) includes three hundred and seventeen pipes, two hundred and sixtyeight demand nodes, and four reservoirs with fixed head within 72.0 m to 74.5 m. The pipe material is the same as PES. A uniform HazenWilliams roughness coefficient of 130 is applied to all pipes. The minimum pressure head of all the demand nodes is maintained at 20 m. The maximum pressure head of each node of MOD is provided in Table MOD.1 In addition, the flow velocity in each pipe is enforced to be less than or equal to 2 m/s. Table MOD.2 shows commercially available diameters and the corresponding unit costs. Figure MOD.1 depicts the layout of MOD.
Table MOD.1. Maximum pressure head requirement of each node of MOD

MOD Table 1 Table available in Microsoft Word 2003 format due to its large size
Table MOD.2. Diameter options and associated unit costs of MOD

Figure MOD.1. Layout of Modena Network
Balerma Irrigation Network (BIN) includes four hundred and fiftyfour relatively small length pipes, four hundred and fortythree demand nodes (hydrants), and four reservoirs with fixed heads within 112 m to 127 m. The material of pipes is polyvinyl chloride (PVC). The DarcyWeisbach roughness coefficient of 0.0025 mm is applied to all the pipes. The minimum pressure head above ground elevation is 20 m for all the demand nodes. Table BIN.1 shows commercially available diameters and the corresponding unit costs. Figure BIN.1 depicts the layout of BIN.
Table BIN.1 Diameter options and associated unit costs of BIN

Figure BIN.1. Layout of Balerma Irrigation Network

Exeter network has three thousand and thirtytwo pipes including five hundred and sixtyseven considered for duplication, five valves, one thousand eight hundred and ninetyone junction nodes and seven water sources. Two major reservoirs (node 3001 and 3002) supply water to the system at fixed head of 58.4 m and 62.4 m respectively. The system is also fed by its neighbour systems via node 3003 to 3007 at fixed rates. Three nonreturn valves (also known as check valves) are connected to node 3001 and 3002 to control the flow direction into and outside the system. One pressure reducing valve locates in the downstream of node 3004 to maintain the downstream pressure within 58.4 m. One throttle control valve is also in the link downstream of node 3004 to control the flow and pressure of system.
The minimum pressure requirement of demand nodes is 20.0 m. There are ten available discrete pipe sizes and one extra option as 'do nothing'. The unit cost for duplicating the existing pipe depends on both the diameter selected and the road type. Table EXN.1 shows the pipe diameters, the corresponding ColebrookWhite friction factors (following DarcyWeisbach formula) and unit costs. The location of major roads is specified in Table EXN.2 in terms of pipe ID. Figure EXN.1 depicts the layout of EXN.
Table EXN.1. Roughness coefficients and unit costs of EXN


Table EXN.2. Location of major road in terms of pipe ID

Figure EXN.1. Layout of Exeter Network^{1}
1 This network is a bit different from the one available at . The modifications are summarised as follows: (1) Node 1610 has been removed to avoid isolated junction; (2) 20 PM in the section of “TIMES” of input file has been changed to 8 PM; (3) Since it is impossible for junction 1107 to meet the minimum pressure requirement, it is ignored in the calculation of constraint violation. Also, it would be too complicated to highlight all the pipes considered for duplication, these pipes are tagged in the input file given.
Data files
The following data files are available:
 True and best known Pareto Front data files;
 True and best known Pareto Front figures;
 EPANET input files;
 Source code required to run and evaluate objective functions.
True and Best Known Pareto Front Data Files
The pareto front files are available as text files where the first column represents the values of the resilience objective and the second column represents the values of the cost objective. The figures are available in Windows metafile (EMF) format.
Type  Problem PF  Figures  EPANET Input Files

SP  Tworeservoir Network  TRN  TRN
Twoloop Network  TLN  TLN
BakRyan Network  BAK  BAK
MP  New York Tunnel Network  NYT  NYT
Blacksburg Network  BLA  BLA
Hanoi Network  HAN  HAN
GoYang Network  GOY  GOY
IP  Fossolo Network  FOS  FOS
Pescara Network  PES  PES
LP  Modena Network  MOD  MOD
Balerma Irrigation Network  BIN  BIN
Exeter Network  EXN  EXN
Source code
The source files are available as a single ZIP archive. This archive also contains the code and instructions on how to run the test cases using MATLAB.
Publication
Detailed description of the optimisation methods used to generate the data are given in the publication:
References
